JMXHH1G03MCUDSP

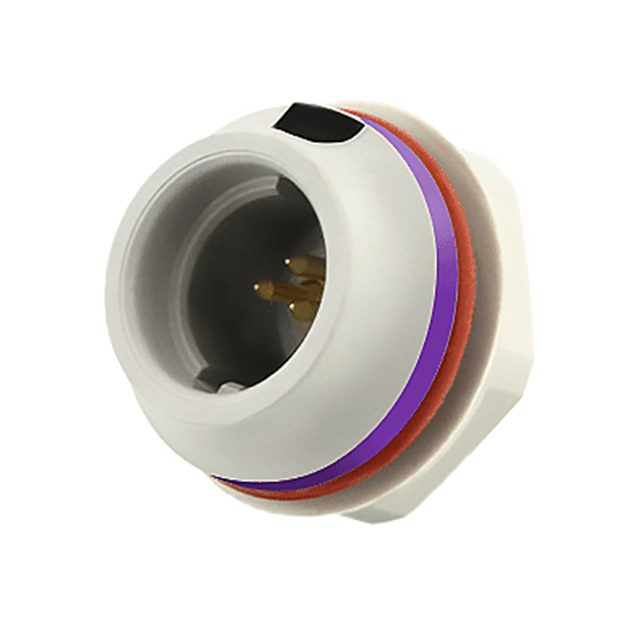

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMXHH1G03MCUDSP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMXHH1G03MCUDSP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMXHH1G03MCUDSP |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN RCPT MALE 3POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $6.48 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMXHH1G03MCUDSP | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT MALE 3POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4765 pcs | Data sheet | JMXHH1GxxMCxDSx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 230V |
| Termination | Crimp | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 1-3 |
| Shell Material | Polyetherimide (PEI) | Shell Finish | - |
| Series | JMX | Packaging | Bulk |
| Orientation | G | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 3 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP50/68 - Dust Protected, Dust Tight, Waterproof | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Crimp Gold |
| Current Rating | 9A | Contact Material | Copper Nickel |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Color | Light Gray, Purple |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial, Instrumentation, Medical |
