SC705CSTRT

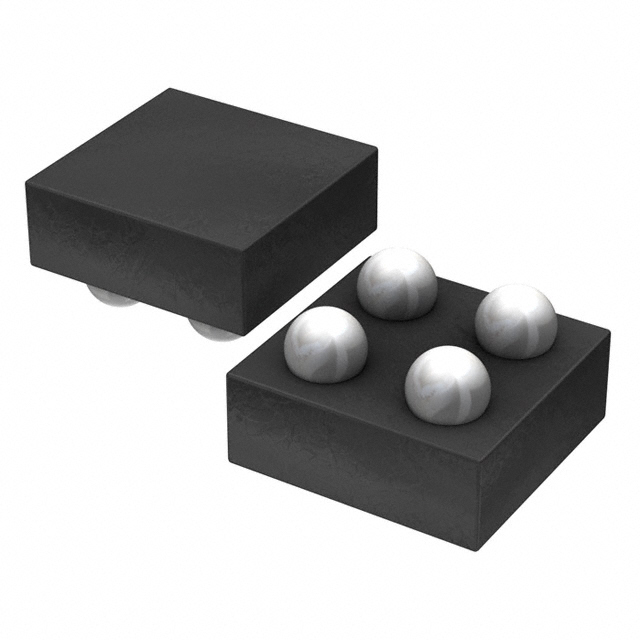

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC705CSTRT with confidence from Components-World.HK, 1 Year Warranty
Dowload SC705CSTRT Details in PDFSee Product Specifications for product details.
Buy SC705CSTRT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC705CSTRT |
|---|---|
| Manufacturer | Semtech |
| Description | IC LOAD SWITCH 500MA 4CSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.061 | $0.057 | $0.054 | $0.053 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC705CSTRT | Manufacturer | Semtech |
|---|---|---|---|
| Description | IC LOAD SWITCH 500MA 4CSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 376929 pcs | Data sheet | SC704,05 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 1.1 V ~ 3.6 V | Switch Type | General Purpose |
| Supplier Device Package | 4-CSP (0.76x0.76) | Series | - |
| Rds On (Typ) | 64 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Tape & Reel (TR) | Package / Case | 4-WFBGA, CSPBGA |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | SC705CSTRTTR | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Input Type | - | Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | Current - Output (Max) | 500mA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
