Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > STR-W6754

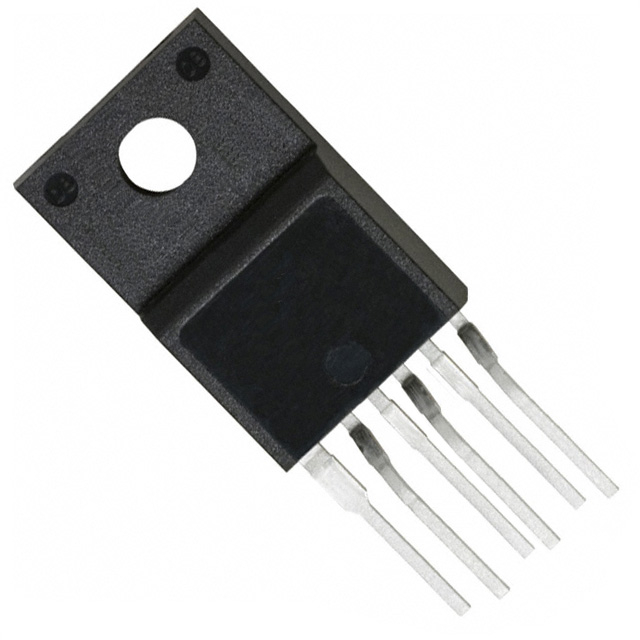

STR-W6754

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STR-W6754 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STR-W6754
Manufacturer	Sanken Electric Co., Ltd.
Description	IC POWER QUASI RES SW TO-220F-6
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5430 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STR-W6754	Manufacturer	Sanken Electric Co., Ltd.
Description	IC POWER QUASI RES SW TO-220F-6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5430 pcs	Data sheet	STR-W6754 General Catalog
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	9.7 V ~ 35 V
Voltage - Start Up	18.2V	Voltage - Breakdown	650V
Topology	Flyback	Supplier Device Package	TO-220F-6L
Series	STR-W6700	Power (Watts)	160W
Packaging	Bulk	Package / Case	TO-220-6 Full Pack, Formed Leads
Output Isolation	Isolated	Other Names	STR-W6754 DK
Operating Temperature	-20°C ~ 115°C (TA)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	19kHz ~ 25kHz
Fault Protection	Current Limiting, Over Load, Over Voltage	Duty Cycle	-
Detailed Description	Converter Offline Flyback Topology 19kHz ~ 25kHz TO-220F-6L	Control Features	Soft Start

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
