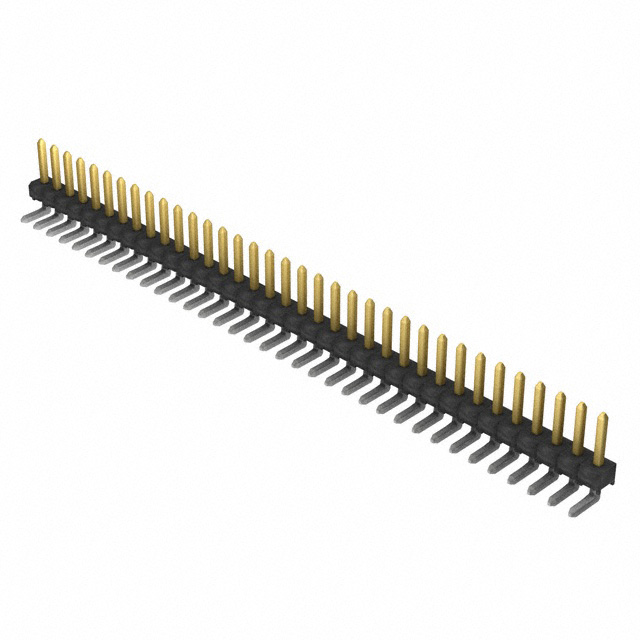

TSW-135-08-S-S-RA
![TSW-135-08-S-S-RA](/thumb/medium/e4/TSW-135-08-S-S-RA.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSW-135-08-S-S-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSW-135-08-S-S-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | TSW-135-08-S-S-RA |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN HEADER 35PS .100 SGL R/A AU |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$1.716 | $1.536 | $1.265 | $1.00 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.858 | $0.783 | $0.753 |
- Product parameter
- Data sheet
Product parameter
Part Number | TSW-135-08-S-S-RA | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN HEADER 35PS .100 SGL R/A AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 41053 pcs | Data sheet | TSW Series DrawingHTSW, TSW Series DatasheetTSW Through Hole Footprint |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | TSW |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | SAM1047-35 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 35 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.119" (3.02mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole, Right Angle 35 position 0.100" (2.54mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
