TSM-112-04-L-DV-P

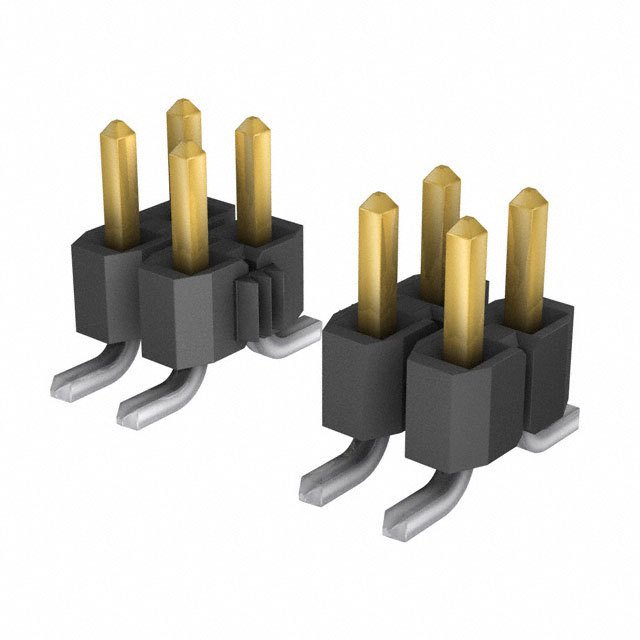

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM-112-04-L-DV-P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM-112-04-L-DV-P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM-112-04-L-DV-P |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .025 SQ. TERMINAL STRIPS |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.985 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM-112-04-L-DV-P | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .025 SQ. TERMINAL STRIPS | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 37300 pcs | Data sheet | TSM-1 Series DrawingTSM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | TSM |
| Row Spacing - Mating | 0.100" (2.54mm) | RoHS Status | RoHS Compliant |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | - | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 24 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
