TMM-108-06-G-D-SM-A

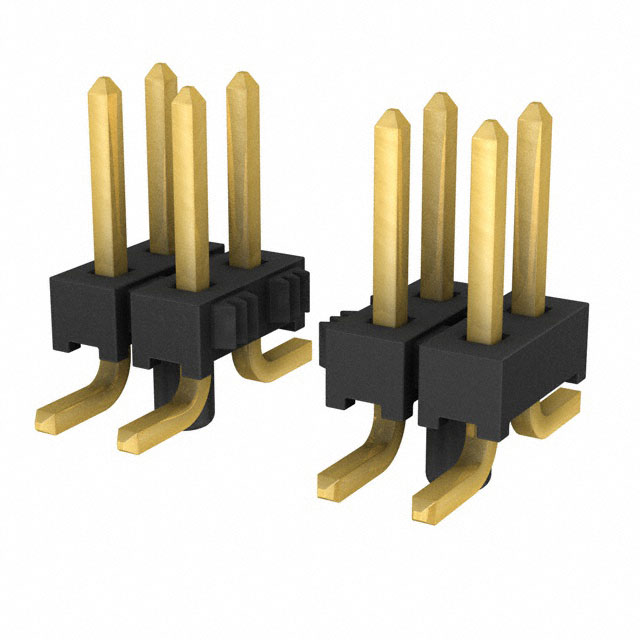

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-108-06-G-D-SM-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-108-06-G-D-SM-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | TMM-108-06-G-D-SM-A |
---|---|
Manufacturer | Samtec, Inc. |
Description | 2MM TERMINAL STRIP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
---|---|---|---|---|---|
$1.196 | $1.146 | $0.955 | |||
500 pcs | 1000 pcs | 5000 pcs | |||
$0.812 | $0.692 | $0.621 |
- Product parameter
- Data sheet
Product parameter
Part Number | TMM-108-06-G-D-SM-A | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | 2MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 54217 pcs | Data sheet | TMM-1xx-xx-xx-x-SM-xx-x DrawingTMM Double Row SMT FootprintTMM Series SMT Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | TMM |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | SAM12173 TMM-108-06-G-D-SM-A-ND |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 16 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Guide |
Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 16 position 0.079" (2.00mm) |
Current Rating | 3.2A per Contact | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Length - Mating | 0.168" (4.27mm) |
Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
