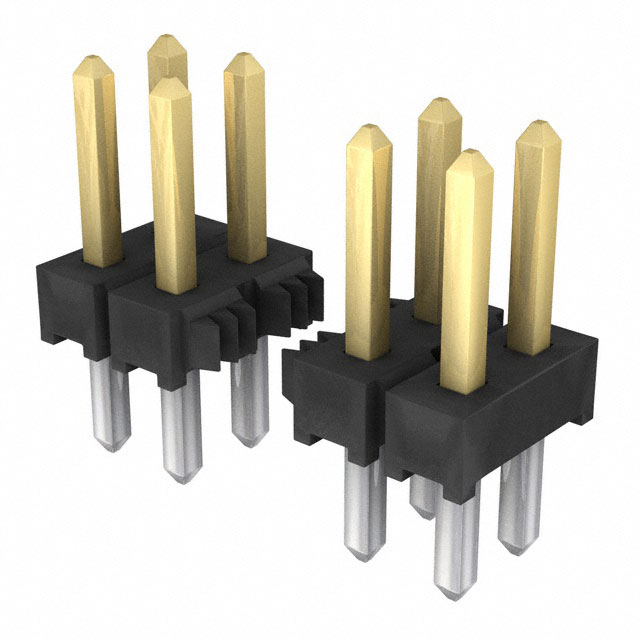

TMM-106-02-L-D
![TMM-106-02-L-D](/thumb/medium/9d/TMM-122-03-S-D.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TMM-106-02-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TMM-106-02-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | TMM-106-02-L-D |
---|---|
Manufacturer | Samtec, Inc. |
Description | 2MM TERMINAL STRIP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$0.486 |
- Product parameter
- Data sheet
Product parameter
Part Number | TMM-106-02-L-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | 2MM TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 78099 pcs | Data sheet | TMM Series TH DatasheetTMM Thru Hole Drawing 1TMM Thru Hole Drawing 2 |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | TMM |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | 0.323" (8.20mm) |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 12 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) | Current Rating | 3.2A per Contact |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
Contact Length - Mating | 0.146" (3.71mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
