TFM-120-01-LM-D

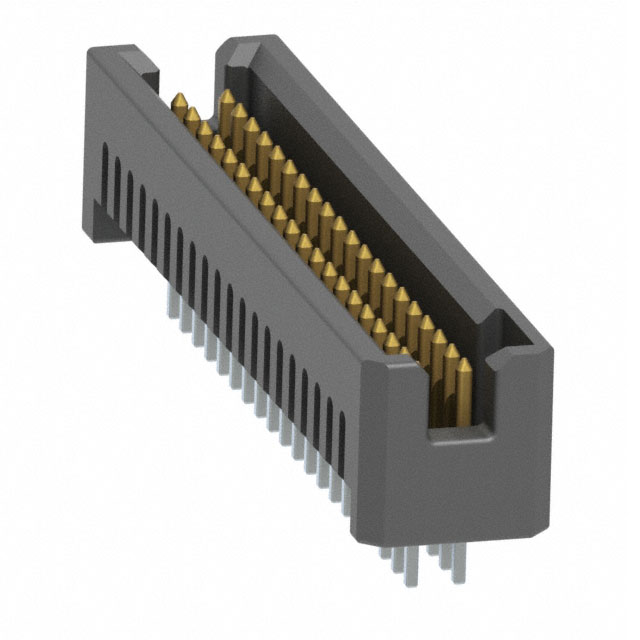

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TFM-120-01-LM-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TFM-120-01-LM-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TFM-120-01-LM-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 MICRO STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.179 | |||||
- Product parameter
Product parameter
| Part Number | TFM-120-01-LM-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 MICRO STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15837 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 275VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ TFM |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.050" (1.27mm) |
| Current Rating | 2.9A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.078" (1.98mm) | Contact Length - Mating | 0.131" (3.33mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
