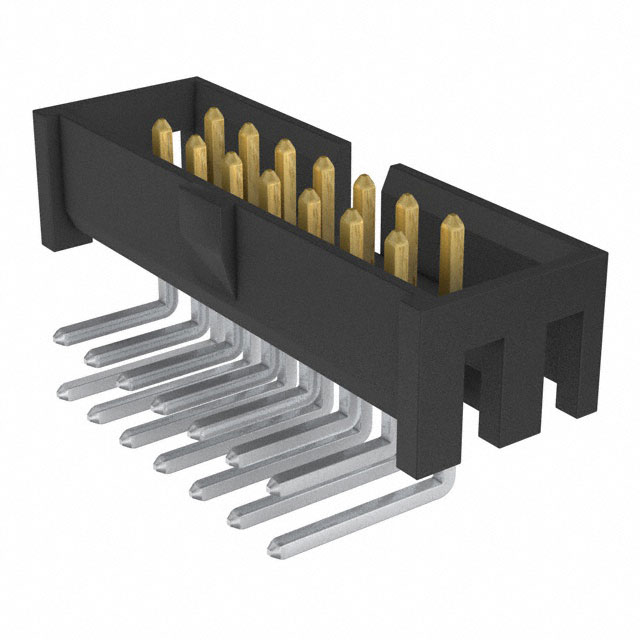

STMM-107-02-S-D-RA
![STMM-107-02-S-D-RA](/thumb/medium/b2/STMM-107-02-S-D-RA.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STMM-107-02-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STMM-107-02-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | STMM-107-02-S-D-RA |
---|---|
Manufacturer | Samtec, Inc. |
Description | 2MM TERMINAL STRIPS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
---|---|---|---|---|---|
$2.025 | $1.943 | $1.619 | $1.376 | $1.174 |
- Product parameter
- Data sheet
Product parameter
Part Number | STMM-107-02-S-D-RA | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | 2MM TERMINAL STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 26529 pcs | Data sheet | STMM, ZSTMM Series DatasheetSTMM-1yy-yy-yy-D-yy-yy Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Flex Stack, STMM |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | SAM11971 STMM-107-02-S-D-RA-ND |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.236" (6.00mm) |
Insulation Color | Black | Ingress Protection | - |
Features | Keying Slot | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm) | Current Rating | 3A |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
