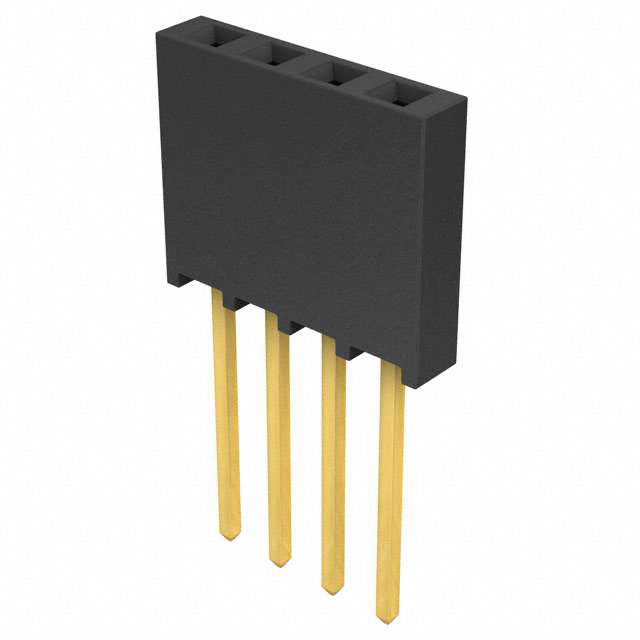

SSQ-104-03-G-S
![SSQ-104-03-G-S](/thumb/medium/36/SSQ-104-03-G-S.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSQ-104-03-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSQ-104-03-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | SSQ-104-03-G-S |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN RCPT .100" 4POS SNGL GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.817 | $0.732 | $0.603 | $0.477 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.409 | $0.373 | $0.359 |
- Product parameter
- Data sheet
Product parameter
Part Number | SSQ-104-03-G-S | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN RCPT .100" 4POS SNGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 59540 pcs | Data sheet | SSQ Through Hole FootprintSSW, SSQ Datasheet - Thru HoleSSQ Series Drawing |
Category | Connectors, Interconnects | Voltage Rating | 550VAC |
Termination | Solder | Style | Board to Board or Cable |
Series | SSQ | Row Spacing - Mating | - |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Other Names | SAM1198-04 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Through Hole |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
Current Rating | 6.3A per Contact | Contact Type | Forked |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.394" (10.00mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
