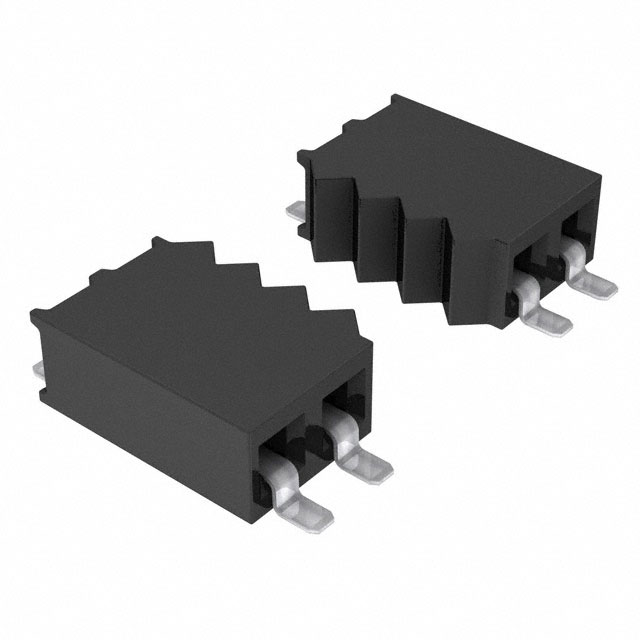

SSM-106-L-SH-TR
![SSM-106-L-SH-TR](/thumb/medium/08/SSM-109-S-SH-TR.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-106-L-SH-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-106-L-SH-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | SSM-106-L-SH-TR |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN RCPT .100" 6POS SNGL HORZ |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | 2500 pcs | 5000 pcs |
---|---|---|---|---|---|
$0.45 | $0.399 | $0.39 | $0.383 | $0.375 |
- Product parameter
- Data sheet
Product parameter
Part Number | SSM-106-L-SH-TR | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN RCPT .100" 6POS SNGL HORZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 99015 pcs | Data sheet | SSM Series DrawingSSM Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
Termination | Solder | Style | Board to Board or Cable |
Series | SSM | Row Spacing - Mating | - |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
Other Names | SAM14598TR SSM-106-L-SH-TR-ND |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.125" (3.18mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle Connector Surface Mount, Right Angle |
Current Rating | 5.2A per Contact | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
