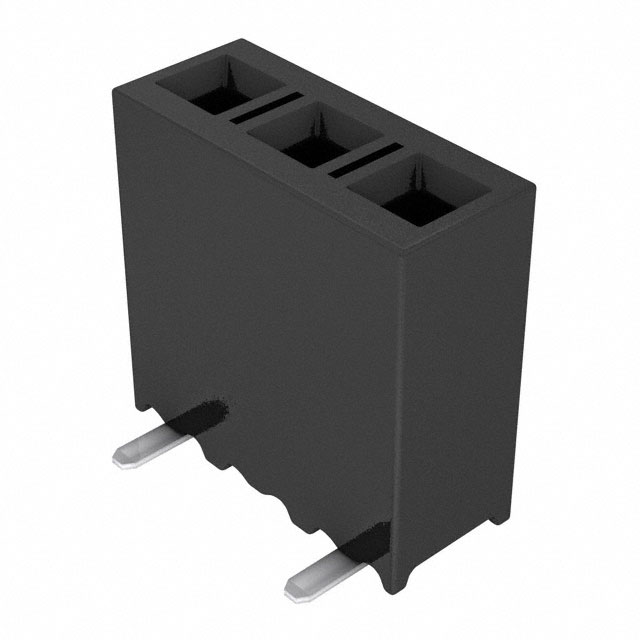

SSM-103-L-SV
![SSM-103-L-SV](/thumb/medium/aa/SSM-103-S-SV.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM-103-L-SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM-103-L-SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | SSM-103-L-SV |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN RCPT .100" 3POS SNGL VERT |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.84 | $0.751 | $0.619 | $0.489 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.42 | $0.383 | $0.368 |
- Product parameter
- Data sheet
Product parameter
Part Number | SSM-103-L-SV | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN RCPT .100" 3POS SNGL VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 89331 pcs | Data sheet | SSM Series DrawingSSM Series DatasheetSSM (Single Vertical) Footprint |
Category | Connectors, Interconnects | Voltage Rating | 405VAC, 572VDC |
Termination | Solder | Style | Board to Board or Cable |
Series | SSM | Row Spacing - Mating | - |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Other Names | SAM1148-03 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 3 | Mounting Type | Surface Mount |
Material Flammability Rating | - | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold |
Current Rating | 5.2A per Contact | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle, Pass Through |
Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
