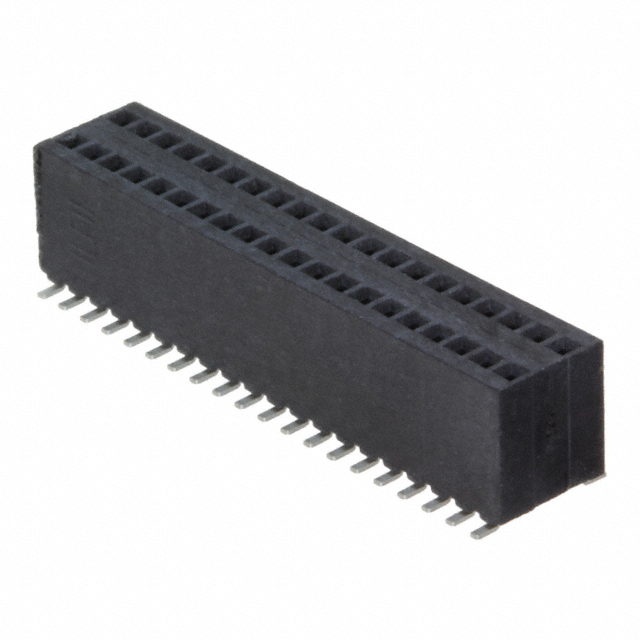

RSM-120-02-L-D
![RSM-120-02-L-D](/thumb/medium/a7/RSM-120-02-L-D.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSM-120-02-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RSM-120-02-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | RSM-120-02-L-D |
---|---|
Manufacturer | Samtec, Inc. |
Description | .050" MICRO STRIP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 22 pcs | 110 pcs | 506 pcs | 1012 pcs |
---|---|---|---|---|---|
$2.235 | $2.039 | $1.554 | $1.311 | $1.238 |
- Product parameter
- Data sheet
Product parameter
Part Number | RSM-120-02-L-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .050" MICRO STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 24845 pcs | Data sheet | RSM (SMT, Double Row) Sheet 1RSM (SMT, Double Row) Sheet 2RSM Series DatasheetRSM (SMT, Double Row) Footprint |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Series | RSM | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
Other Names | SAM9850 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 40 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.240" (6.10mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector Surface Mount |
Current Rating | 3.1A per Contact | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
