MTLW-102-05-H-D-155

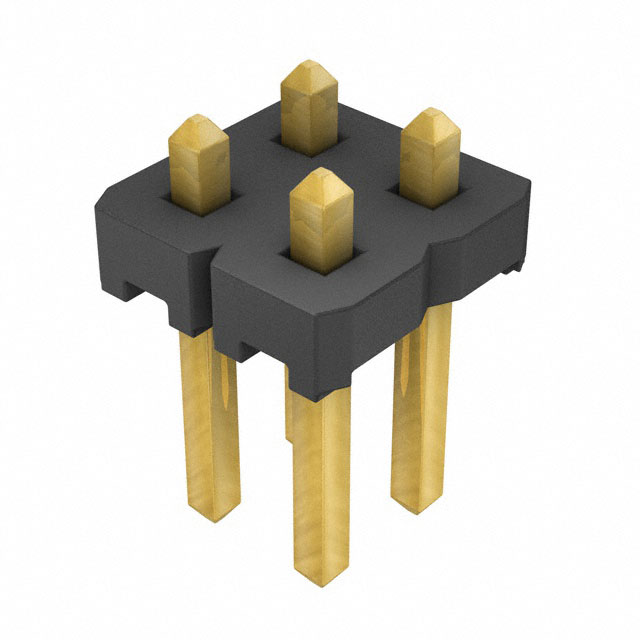

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTLW-102-05-H-D-155 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTLW-102-05-H-D-155 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTLW-102-05-H-D-155 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 4POS 1.00" DL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.463 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTLW-102-05-H-D-155 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 4POS 1.00" DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77073 pcs | Data sheet | MTLW-1yy-yy-y-y-yyy-yy-yy Drawing 1MTLW, TLW Series DatasheetMTLW-1yy-yy-y-y-yyy-yy-yy Drawing 2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Flex Stack, MTLW |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.335" (8.51mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.060" (1.52mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | 5.2A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.155" (3.94mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
