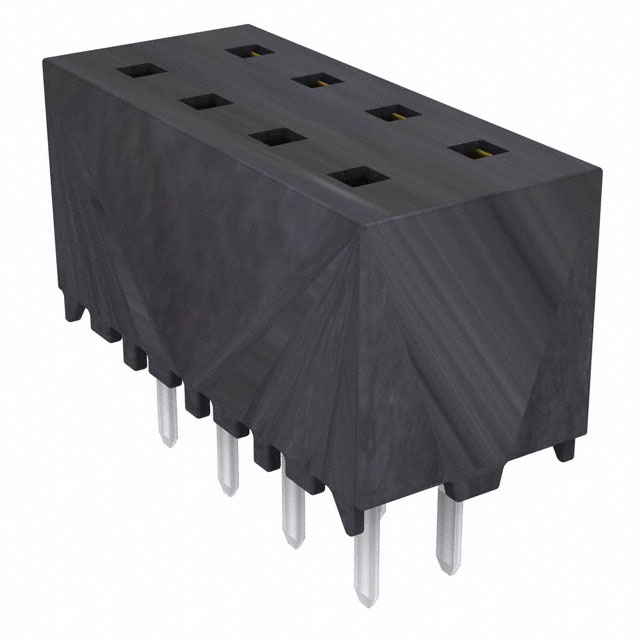

MMS-104-01-L-DV
![MMS-104-01-L-DV](/thumb/medium/03/MMS-104-01-L-DV.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMS-104-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMS-104-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | MMS-104-01-L-DV |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN RCPT 2MM 8POS DL VERT PCB |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$1.433 | $1.242 | $1.051 | $0.836 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.681 | $0.621 | $0.597 |
- Product parameter
- Data sheet
Product parameter
Part Number | MMS-104-01-L-DV | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN RCPT 2MM 8POS DL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 50242 pcs | Data sheet | MMS-1xx-01 Drawing 2MMS-1xx-01 Drawing 1MMS-1XX-01yyy-yy-yy DrawingMMS Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Series | MMS | Row Spacing - Mating | 0.079" (2.00mm) |
Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
Other Names | SAM1228-04 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 8 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.175" (4.45mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 3.9A per Contact |
Contact Type | Female Socket | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Receptacle | Applications | - |
