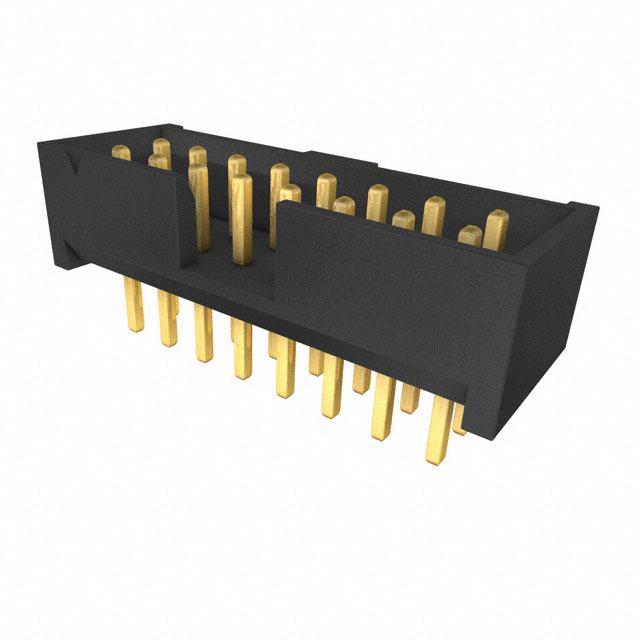

LTMM-108-02-G-D
![LTMM-108-02-G-D](/thumb/medium/5b/LTMM-108-02-G-D.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTMM-108-02-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTMM-108-02-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | LTMM-108-02-G-D |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN SHD HDR 16 POS 2MM SDR TH |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$1.508 |
- Product parameter
- Data sheet
Product parameter
Part Number | LTMM-108-02-G-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN SHD HDR 16 POS 2MM SDR TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 21840 pcs | Data sheet | LTMM-1XX-XX-XX-D-XX-XX DrawingLTMM-1xx-xx-xx-D-xx-xx FootprintSTMM/LTMM, ZSTMM/ZLTMM Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Shrouded - 4 Wall | Series | Flex Stack, LTMM |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tube | Overall Contact Length | - |
Other Names | Q5819902 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 16 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.079" (2.00mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.120" (3.05mm) |
Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
