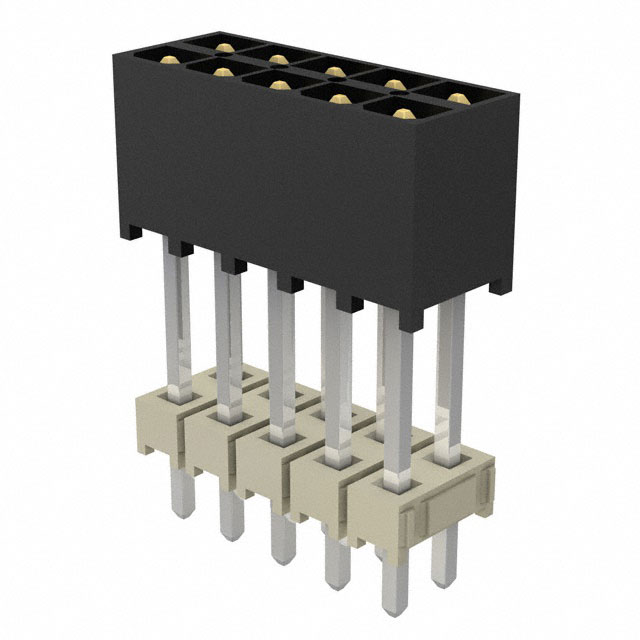

IPT1-105-04-L-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPT1-105-04-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPT1-105-04-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | IPT1-105-04-L-D |
---|---|
Manufacturer | Samtec, Inc. |
Description | .100 DOUBLE ROW SHROUDED TERMINA |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$1.029 |
- Product parameter
- Data sheet
Product parameter
Part Number | IPT1-105-04-L-D | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .100 DOUBLE ROW SHROUDED TERMINA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 29547 pcs | Data sheet | IPT1 Series DatasheetIPT1-1x-x-x-D-x Drawing |
Category | Connectors, Interconnects | Voltage Rating | 775VAC, 1095VDC |
Termination | Solder | Style | Board to Board |
Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPT1 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tube | Overall Contact Length | 0.335" (8.51mm) |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 10 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.250" (6.35mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) | Current Rating | 2.3A per Contact |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.085" (2.16mm) |
Contact Length - Mating | 0.155" (3.94mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
