IPL1-113-01-F-D-K

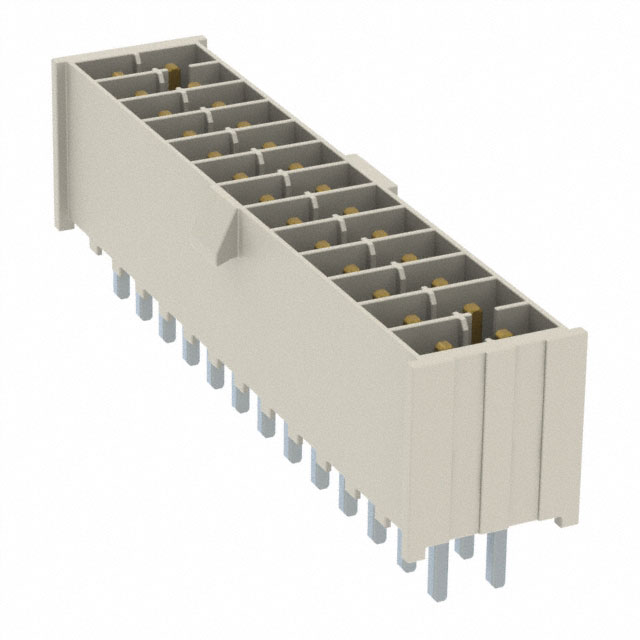

![IPL1-113-01-F-D-K](/thumb/medium/bd/IPL1-113-01-F-D-K.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPL1-113-01-F-D-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPL1-113-01-F-D-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | IPL1-113-01-F-D-K |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN SHROUDED PWR HEADER 26POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 500 pcs | ||||
---|---|---|---|---|---|
$1.046 |
- Product parameter
- Data sheet
Product parameter
Part Number | IPL1-113-01-F-D-K | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN SHROUDED PWR HEADER 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 36887 pcs | Data sheet | IPL1-1x-x-x-D-x DrawingIPL1 Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | 675VAC, 954VDC |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPL1 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tube | Overall Contact Length | - |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 26 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.320" (8.13mm) |
Insulation Color | Natural | Ingress Protection | - |
Features | - | Fastening Type | Locking Ramp |
Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
Contact Length - Mating | 0.215" (5.46mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
