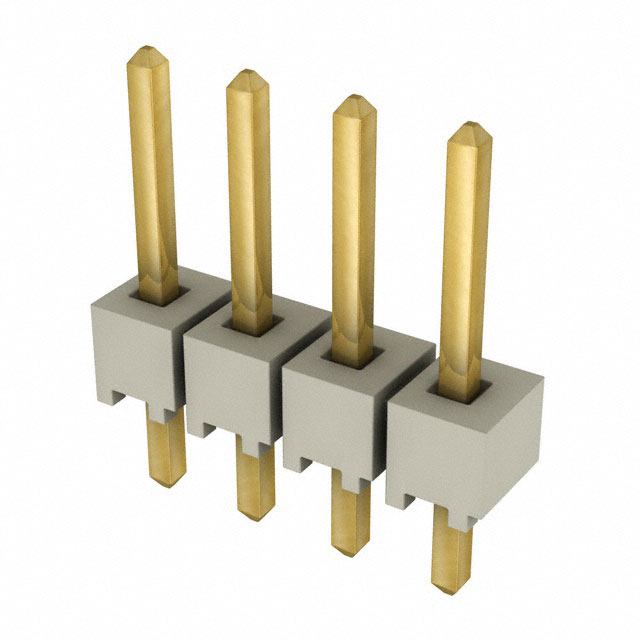

HTSW-104-07-G-S


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTSW-104-07-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HTSW-104-07-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | HTSW-104-07-G-S |
---|---|
Manufacturer | Samtec, Inc. |
Description | .025" SQ. TERMINAL STRIPS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.181 | $0.169 | $0.13 | $0.113 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.093 | $0.082 | $0.076 |
- Product parameter
- Data sheet
Product parameter
Part Number | HTSW-104-07-G-S | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .025" SQ. TERMINAL STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 296114 pcs | Data sheet | HTSW Series DrawingHTSW, TSW Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | HTSW |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | 0.430" (10.92mm) |
Other Names | SAM9526 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
Insulation Height | 0.100" (2.54mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.230" (5.84mm) |
Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
