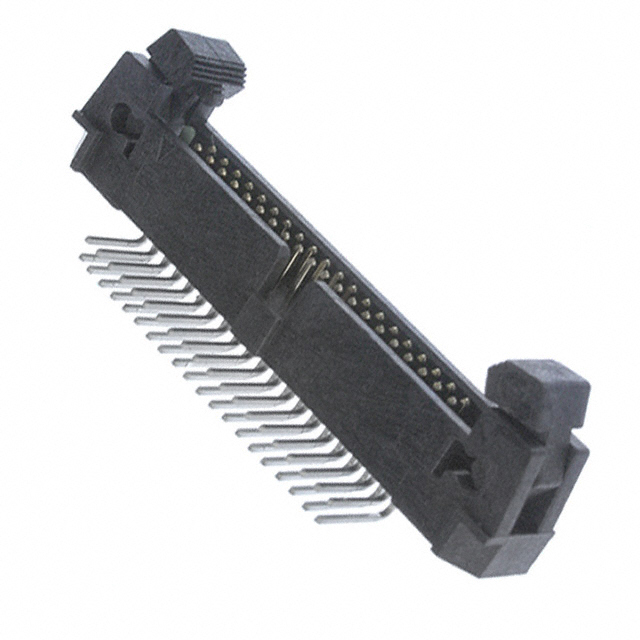

EHF-120-01-L-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-120-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-120-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHF-120-01-L-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER .05" 40POS DUAL R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.691 | $2.578 | $2.13 | $1.794 | $1.57 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EHF-120-01-L-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER .05" 40POS DUAL R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22896 pcs | Data sheet | EHF FootprintSHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EHF |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | EHF12001LDRA SAM8212 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.263" (6.67mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
