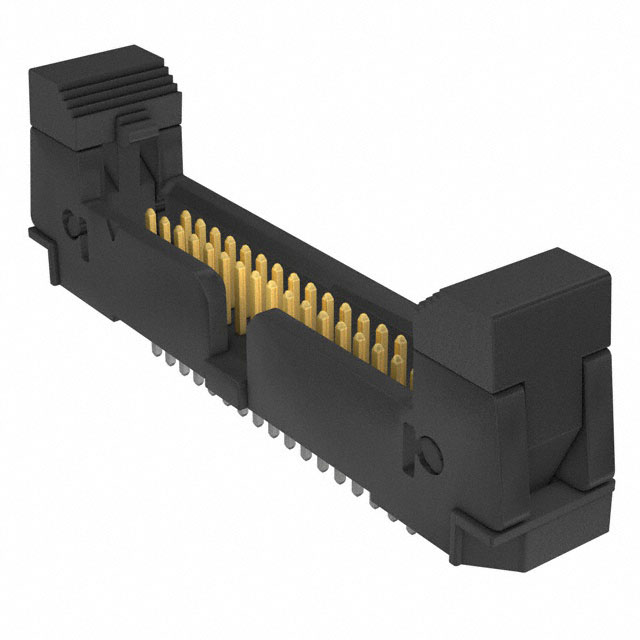

EHF-117-01-F-D-02


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-117-01-F-D-02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-117-01-F-D-02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | EHF-117-01-F-D-02 |
---|---|
Manufacturer | Samtec, Inc. |
Description | .050 EJECTOR HEADER ASSEMBLY |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$1.862 |
- Product parameter
Product parameter
Part Number | EHF-117-01-F-D-02 | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .050 EJECTOR HEADER ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 18061 pcs | Data sheet | |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | EHF |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Tube | Overall Contact Length | 0.350" (8.89mm) |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | 33 | Number of Positions | 34 |
Mounting Type | Through Hole | Material Flammability Rating | - |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 34 position 0.050" (1.27mm) |
Current Rating | 1.75A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.120" (3.05mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
