Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > EHF-110-01-L-D-RA

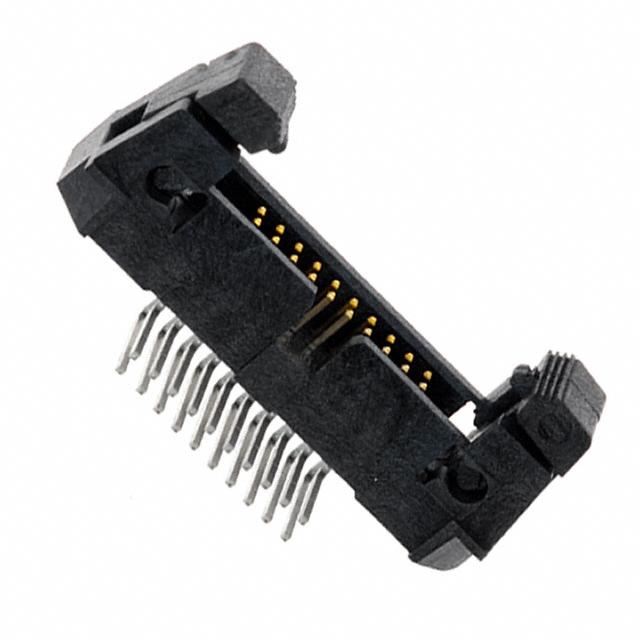

EHF-110-01-L-D-RA

EHF-110-01-L-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-110-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number EHF-110-01-L-D-RA
Manufacturer Samtec, Inc.
Description CONN HEADER .05" 20POS DUAL R/A
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 27504 pcs
Reference Price
(In US Dollars)
1 pcs20 pcs100 pcs500 pcs1000 pcs
$1.875$1.80$1.50$1.275$1.087

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.875

Product parameter

Part Number EHF-110-01-L-D-RA Manufacturer Samtec, Inc.
Description CONN HEADER .05" 20POS DUAL R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 27504 pcs Data sheet EHF FootprintSHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series EHF
Row Spacing - Mating 0.050" (1.27mm) Pitch - Mating 0.050" (1.27mm)
Packaging Tube Overall Contact Length -
Other Names EHF11001LDRA
SAM8209
Operating Temperature -55°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 20 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating -
Mated Stacking Heights - Manufacturer Standard Lead Time 3 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height 0.263" (6.67mm) Insulation Color Black
Ingress Protection - Features Keying Slot
Fastening Type Latch Lock/Eject Hooks Detailed Description Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm)
Current Rating 1.75A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post 0.090" (2.29mm) Contact Length - Mating 0.120" (3.05mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header Applications -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
