CLP-110-02-L-D-BE-PA-TR

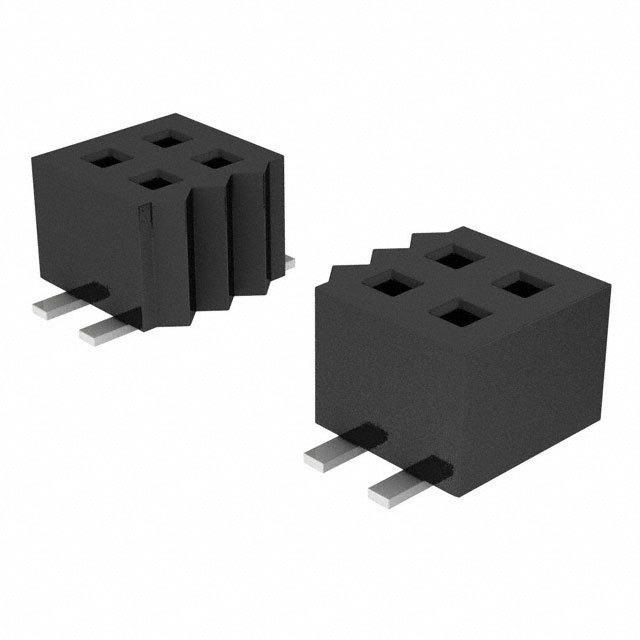

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CLP-110-02-L-D-BE-PA-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CLP-110-02-L-D-BE-PA-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CLP-110-02-L-D-BE-PA-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050" X .050 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 725 pcs | ||||
|---|---|---|---|---|---|
| $0.987 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CLP-110-02-L-D-BE-PA-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050" X .050 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30474 pcs | Data sheet | CLP-1yy-yy-yyy-D-yy DrawingCLP Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 240VAC, 330VDC |
| Termination | Solder | Style | Board to Board |
| Series | CLP | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.084" (2.14mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle, Bottom Entry Connector Surface Mount | Current Rating | 3.3A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom Entry | Applications | - |
