CLE-164-01-G-DV-A

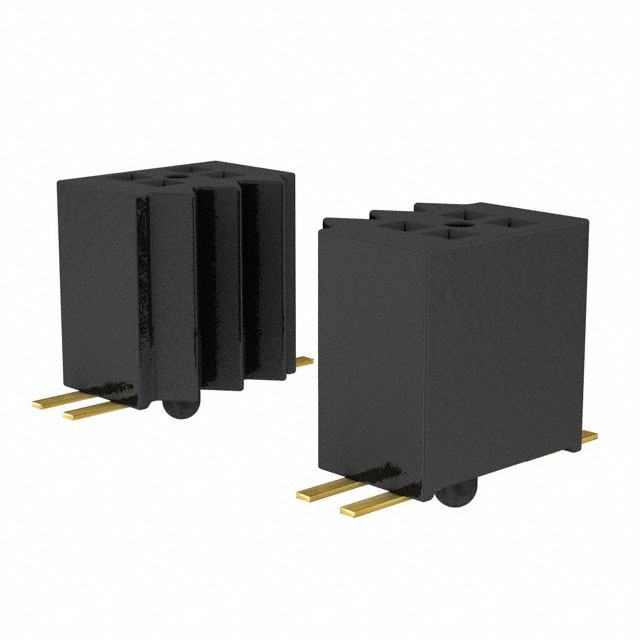

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CLE-164-01-G-DV-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CLE-164-01-G-DV-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CLE-164-01-G-DV-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .8MM MICRO SOCKET STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.609 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CLE-164-01-G-DV-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .8MM MICRO SOCKET STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6532 pcs | Data sheet | CLE Series DrawingCLE Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | CLE | Row Spacing - Mating | 0.047" (1.20mm) |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 128 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.130" (3.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 128 Position Receptacle, Pass Through Connector Surface Mount | Current Rating | 2.7A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Pass Through | Applications | - |
