BTH-120-05-F-D-A

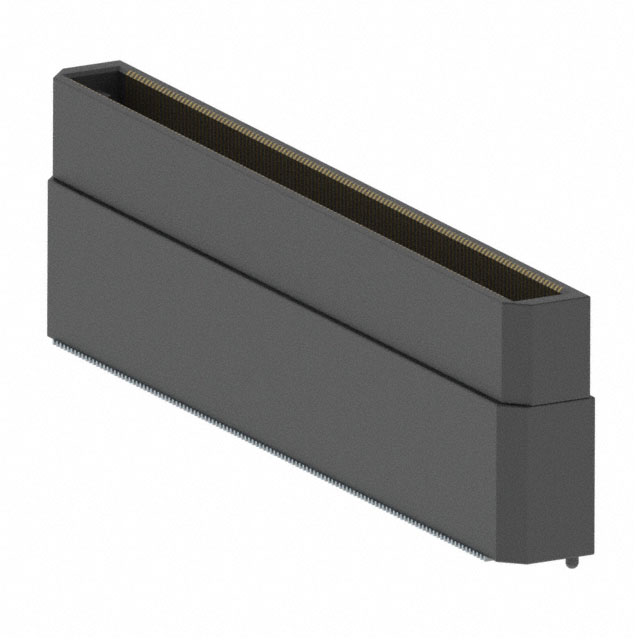

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTH-120-05-F-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BTH-120-05-F-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | BTH-120-05-F-D-A |
---|---|
Manufacturer | Samtec, Inc. |
Description | .5MM DOUBLE ROW TERMINAL ASSEMBL |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 500 pcs | ||||
---|---|---|---|---|---|
$4.348 |
- Product parameter
- Data sheet
Product parameter
Part Number | BTH-120-05-F-D-A | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | .5MM DOUBLE ROW TERMINAL ASSEMBL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7926 pcs | Data sheet | BTH,BSH Series Datasheet |
Category | Connectors, Interconnects | Series | BTH |
Pitch | 0.020" (0.50mm) | Packaging | Tube |
Number of Rows | 2 | Number of Positions | 240 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mated Stacking Heights | 19mm | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.718" (18.24mm) |
Features | Board Guide | Detailed Description | 240 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
Contact Finish Thickness | 3.00µin (0.076µm) | Contact Finish | Gold |
Connector Type | Header, Outer Shroud Contacts |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
