BCS-143-L-D-HE-034

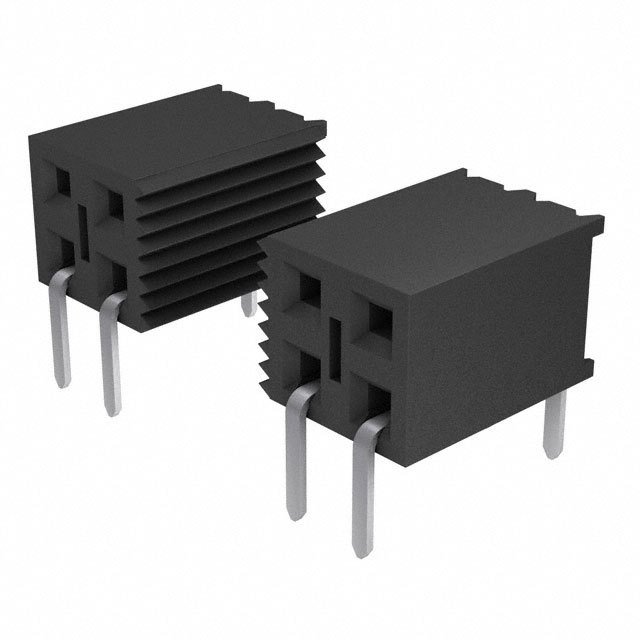

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BCS-143-L-D-HE-034 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BCS-143-L-D-HE-034 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BCS-143-L-D-HE-034 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | BOX CONNECTOR SOCKET STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.395 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BCS-143-L-D-HE-034 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | BOX CONNECTOR SOCKET STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11212 pcs | Data sheet | BCS Series DrawingBCS Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 475VAC |
| Termination | Solder | Style | Board to Board |
| Series | Tiger Claw™ BCS | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | 85 | Number of Positions | 86 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.210" (5.33mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 86 Position Receptacle Connector Through Hole, Right Angle | Current Rating | 4.6A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
