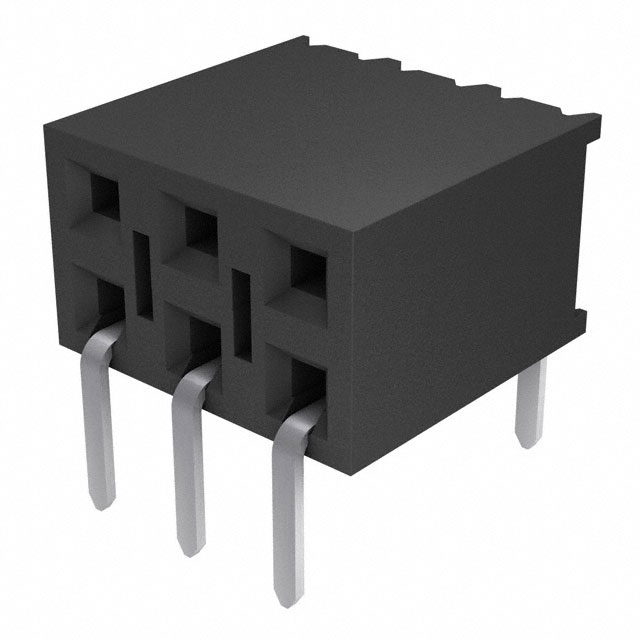

BCS-103-L-D-HE


OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BCS-103-L-D-HE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BCS-103-L-D-HE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | BCS-103-L-D-HE |
---|---|
Manufacturer | Samtec, Inc. |
Description | CONN RCPT 6POS .100" DUAL HORZ |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$1.203 | $1.077 | $0.887 | $0.701 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.602 | $0.549 | $0.528 |
- Product parameter
- Data sheet
Product parameter
Part Number | BCS-103-L-D-HE | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | CONN RCPT 6POS .100" DUAL HORZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 62826 pcs | Data sheet | BCS Through Hole FootprintBCS Series DrawingBCS Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | 475VAC |
Termination | Solder | Style | Board to Board |
Series | Tiger Claw™ BCS | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
Other Names | SAM1006-03 | Operating Temperature | -55°C ~ 125°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.225" (5.72mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | 4.6A per Contact |
Contact Type | Female Socket | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.125" (3.18mm) |
Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Receptacle | Applications | - |
