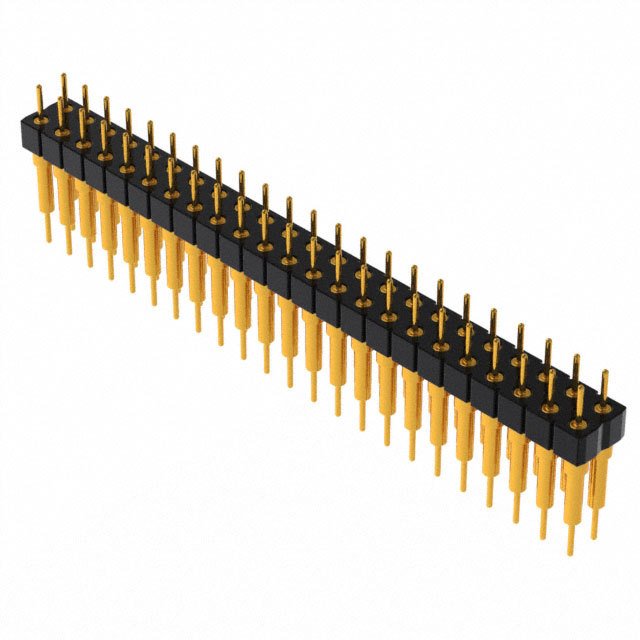

BBD-123-G-B
![BBD-123-G-B](/thumb/medium/12/BBD-123-G-B.jpg)
![](/upfile/linecard/medium_Samtec%2CInc.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BBD-123-G-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BBD-123-G-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | BBD-123-G-B |
---|---|
Manufacturer | Samtec, Inc. |
Description | INTERCONNECT STRIPS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$5.61 |
- Product parameter
- Data sheet
Product parameter
Part Number | BBD-123-G-B | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | INTERCONNECT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6113 pcs | Data sheet | Bxx-1xx-x-x-x DrawingB(BS,BL,HS,BD,DL) Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | BBD |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tube | Overall Contact Length | 0.585" (14.86mm) |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 46 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polyester, Glass Filled | Insulation Height | 0.335" (8.51mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 46 position 0.100" (2.54mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Circular |
Contact Material | - | Contact Length - Post | 0.125" (3.18mm) |
Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Nickel |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
