BBD-118-G-C

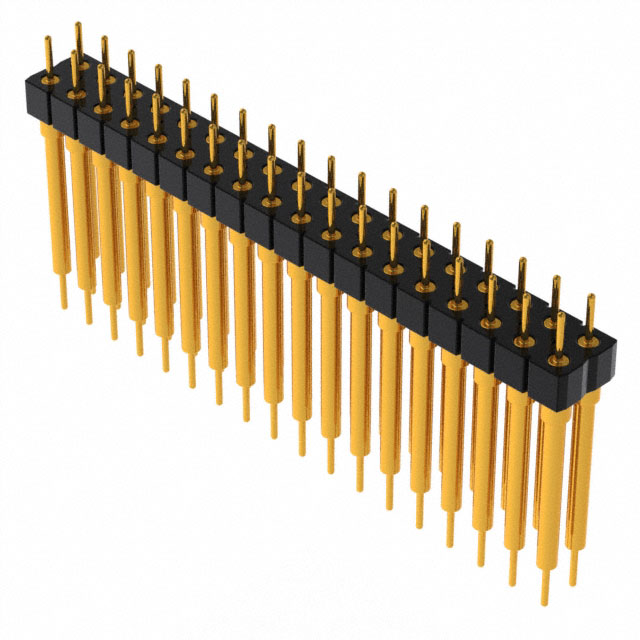

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BBD-118-G-C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BBD-118-G-C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | BBD-118-G-C |
---|---|
Manufacturer | Samtec, Inc. |
Description | INTERCONNECT STRIPS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | ||||
---|---|---|---|---|---|
$5.127 |
- Product parameter
- Data sheet
Product parameter
Part Number | BBD-118-G-C | Manufacturer | Samtec, Inc. |
---|---|---|---|
Description | INTERCONNECT STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6084 pcs | Data sheet | Bxx-1xx-x-x-x DrawingB(BS,BL,HS,BD,DL) Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | BBD |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tube | Overall Contact Length | 0.835" (21.21mm) |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 36 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | - | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
Insulation Height | 0.585" (14.86mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 36 position 0.100" (2.54mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | - |
Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.125" (3.18mm) |
Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Nickel | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
