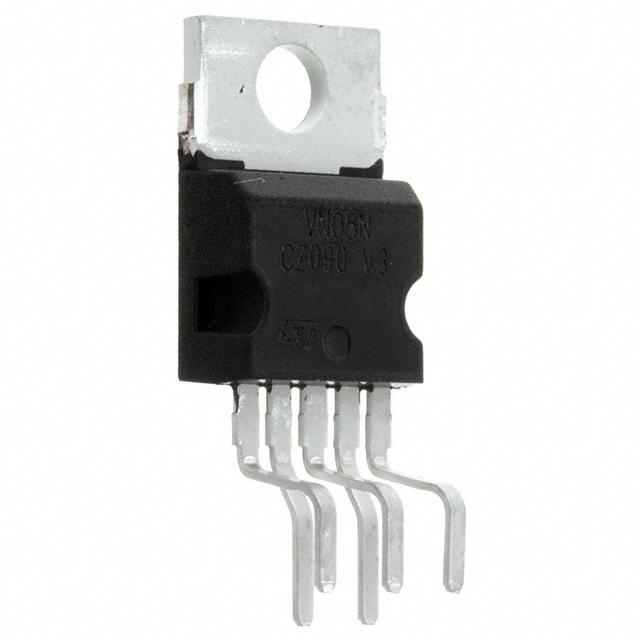

VN05N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VN05N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VN05N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VN05N |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | RELAY SSR HI-SIDE 5-PENTAWATT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.555 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | VN05N | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | RELAY SSR HI-SIDE 5-PENTAWATT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69124 pcs | Data sheet | VN05N |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 7 V ~ 26 V | Switch Type | General Purpose |
| Supplier Device Package | 5-PENTAWATT | Series | - |
| Rds On (Typ) | 180 mOhm (Max) | Ratio - Input:Output | 1:1 |
| Packaging | Tube | Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | 497-3088-5 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Input Type | Non-Inverting | Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature | Current - Output (Max) | 13A |
| Base Part Number | VN05 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
