STW43NM60N

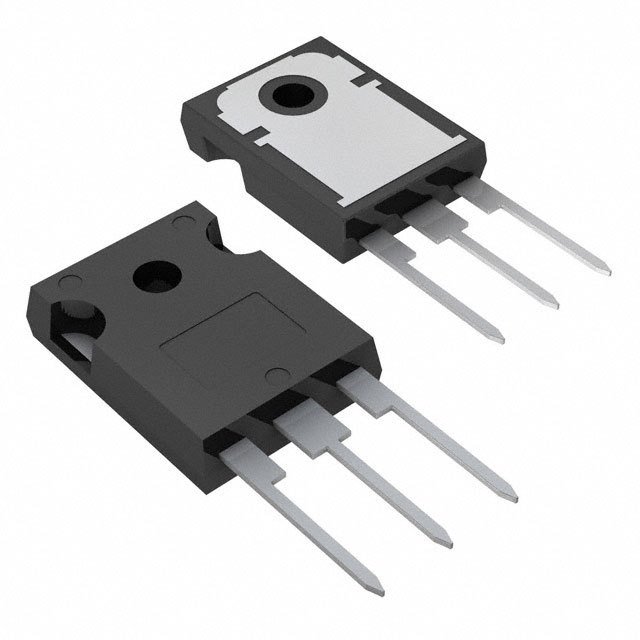

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STW43NM60N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STW43NM60N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STW43NM60N |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 600V 35A TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STW43NM60N | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 600V 35A TO-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4106 pcs | Data sheet | STW43NM60N |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247-3 | Series | MDmesh™ II |
| Rds On (Max) @ Id, Vgs | 88 mOhm @ 17.5A, 10V | Power Dissipation (Max) | 255W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | 497-8460-5 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4200pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 130nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 35A (Tc) 255W (Tc) Through Hole TO-247-3 |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
