STU4N52K3

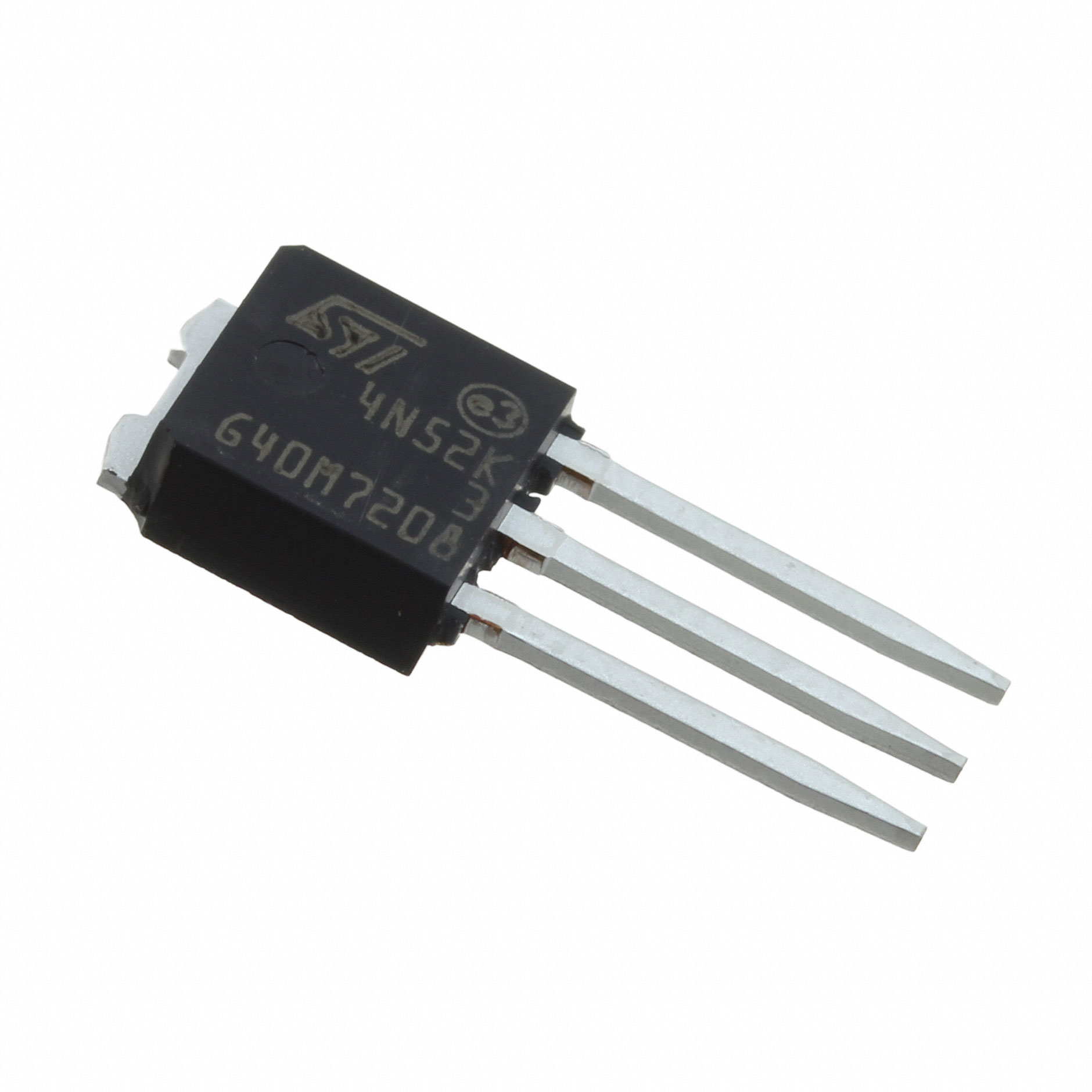

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STU4N52K3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STU4N52K3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STU4N52K3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 525V 2.5A IPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 75 pcs | 150 pcs | 525 pcs | 1050 pcs |
|---|---|---|---|---|---|
| $0.45 | $0.359 | $0.314 | $0.243 | $0.192 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | STU4N52K3 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 525V 2.5A IPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105097 pcs | Data sheet | STx4N52K3 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I-PAK | Series | SuperMESH3™ |
| Rds On (Max) @ Id, Vgs | 2.6 Ohm @ 1.25A, 10V | Power Dissipation (Max) | 45W (Tc) |
| Packaging | Tube | Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Other Names | 497-12363 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 334pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 525V | Detailed Description | N-Channel 525V 2.5A (Tc) 45W (Tc) Through Hole I-PAK |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
