Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > STTA512F

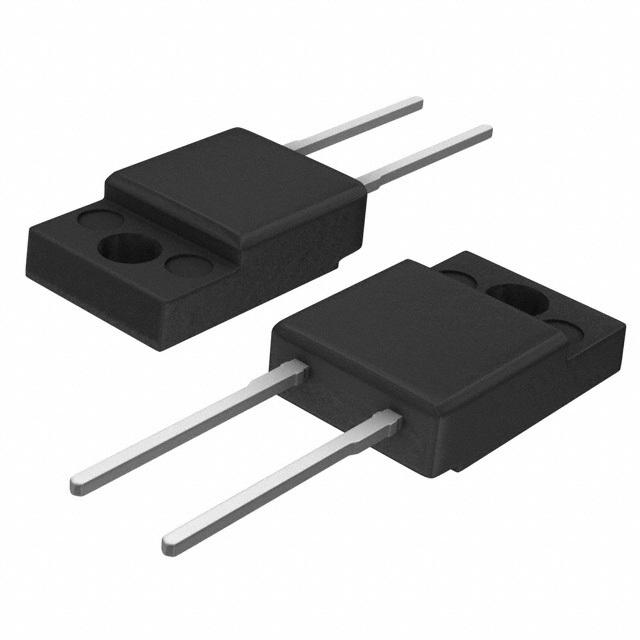

STTA512F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STTA512F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STTA512F
Manufacturer	STMicroelectronics
Description	DIODE GP 1.2KV 5A ISOWATT-220AC
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 64464 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.306

Product parameter
Data sheet

Product parameter

Part Number	STTA512F	Manufacturer	STMicroelectronics
Description	DIODE GP 1.2KV 5A ISOWATT-220AC	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	64464 pcs	Data sheet	STTA512D/F/B/FP
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	2.2V @ 5A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	ISOWATT-220AC
Speed	Fast Recovery = 200mA (Io)	Series	TURBOSWITCH™
Reverse Recovery Time (trr)	95ns	Packaging	Tube
Package / Case	ISOWATT220AC-3	Other Names	497-2690-5
Operating Temperature - Junction	150°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Diode Type	Standard	Detailed Description	Diode Standard 1200V 5A Through Hole ISOWATT-220AC
Current - Reverse Leakage @ Vr	100µA @ 1200V	Current - Average Rectified (Io)	5A
Capacitance @ Vr, F	-

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
