Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > STPS4045CP

STPS4045CP

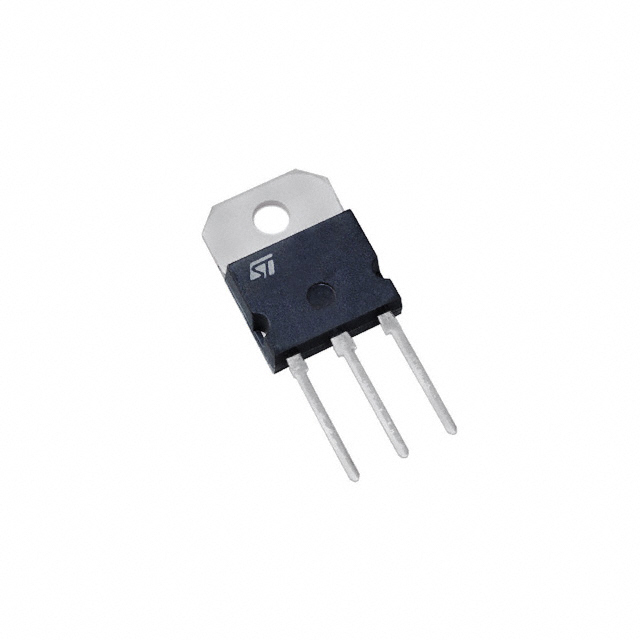

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STPS4045CP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STPS4045CP
Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 45V SOT93
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 43788 pcs
Reference Price (In US Dollars)	600 pcs
Reference Price (In US Dollars)	$0.72

Product parameter
Data sheet

Product parameter

Part Number	STPS4045CP	Manufacturer	STMicroelectronics
Description	DIODE ARRAY SCHOTTKY 45V SOT93	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43788 pcs	Data sheet	STPS4045C
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	760mV @ 20A
Voltage - DC Reverse (Vr) (Max)	45V	Supplier Device Package	SOT-93
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tube	Package / Case	TO-218-3
Operating Temperature - Junction	175°C (Max)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Schottky 45V 20A Through Hole TO-218-3	Current - Reverse Leakage @ Vr	200µA @ 45V
Current - Average Rectified (Io) (per Diode)	20A

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
