STL4P3LLH6

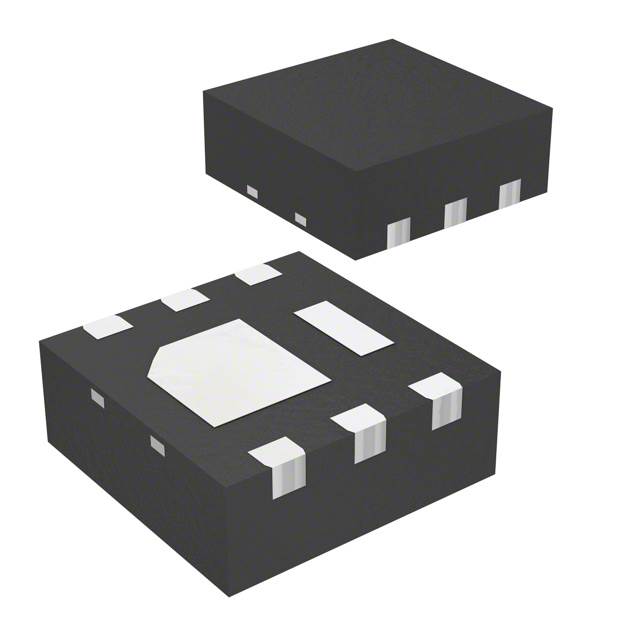

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL4P3LLH6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL4P3LLH6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL4P3LLH6 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET P-CH 30V 4A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.075 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STL4P3LLH6 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET P-CH 30V 4A POWERFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 295465 pcs | Data sheet | STL4P3LLH6 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (2x2) | Series | DeepGATE™, STripFET™ H6 |
| Rds On (Max) @ Id, Vgs | 56 mOhm @ 2A, 10V | Power Dissipation (Max) | 2.4W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-PowerWDFN |
| Other Names | 497-15510-2 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 38 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 639pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 4A (Ta) 2.4W (Ta) Surface Mount PowerFlat™ (2x2) | Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
