STL35N75LF3

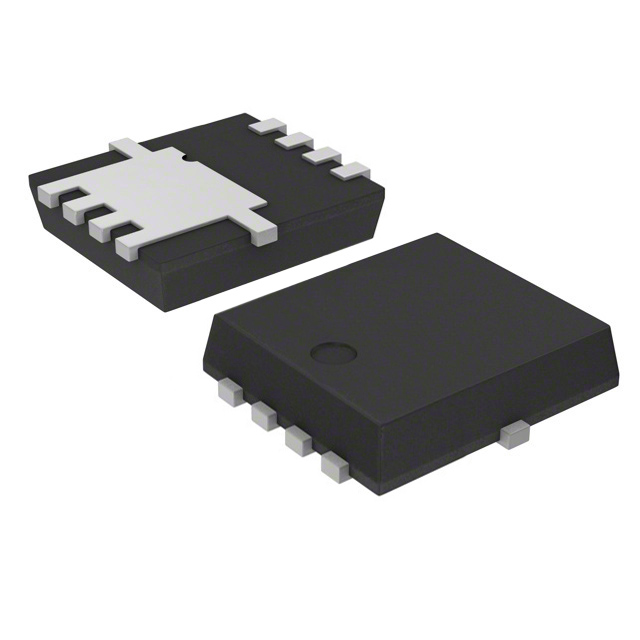

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL35N75LF3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL35N75LF3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL35N75LF3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.149 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STL35N75LF3 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET | Lead Free Status / RoHS Status | |
| Quantity Available | 142535 pcs | Data sheet | Power Mgmt Guide Brochure |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (3.3x3.3) | Series | - |
| Rds On (Max) @ Id, Vgs | 25 mOhm @ 4A, 10V | Power Dissipation (Max) | 50W (Tc) |
| Package / Case | 8-PowerVDFN | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 7.5nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 75V | Detailed Description | N-Channel 75V 32A (Tc) 50W (Tc) Surface Mount PowerFlat™ (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 32A (Tc) |
