STL260N3LLH6

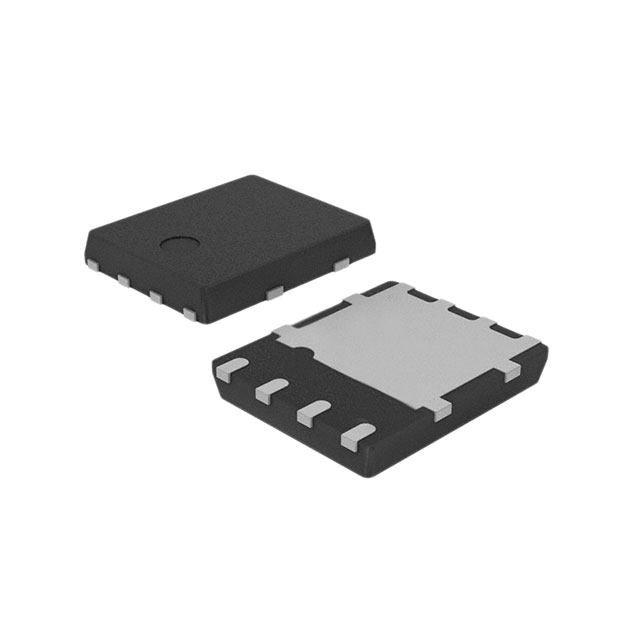

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL260N3LLH6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL260N3LLH6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL260N3LLH6 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 30V 260A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.902 | $0.814 | $0.654 | $0.509 | $0.422 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | STL260N3LLH6 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 30V 260A POWERFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76167 pcs | Data sheet | STL260N3LLH6 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA (Min) |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (5x6) | Series | STripFET™ H6 |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 22.5A, 10V | Power Dissipation (Max) | 166W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerVDFN |
| Other Names | 497-15260-1 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 38 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6375pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 61.5nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 260A (Tc) 166W (Tc) Surface Mount PowerFlat™ (5x6) | Current - Continuous Drain (Id) @ 25°C | 260A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
