STL20NM20N

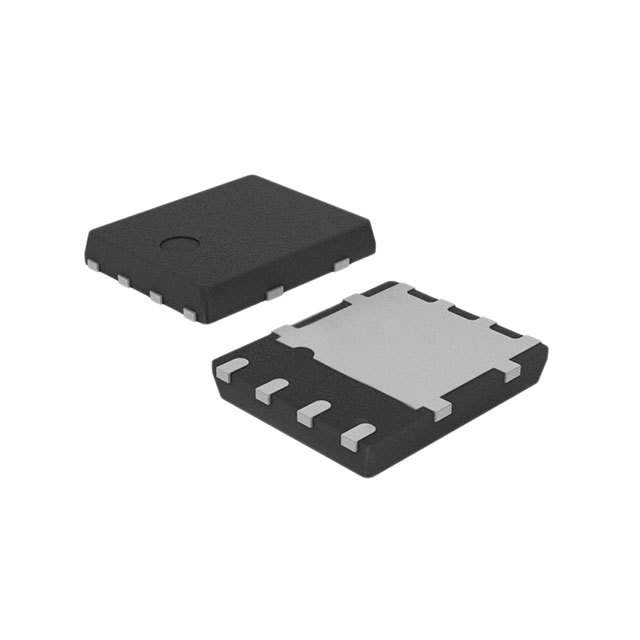

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL20NM20N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL20NM20N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL20NM20N |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 200V 20A PWRFLAT6X5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.671 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STL20NM20N | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 200V 20A PWRFLAT6X5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55328 pcs | Data sheet | STL20NM20N |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (6x5) | Series | MDmesh™ II |
| Rds On (Max) @ Id, Vgs | 105 mOhm @ 10A, 10V | Power Dissipation (Max) | 80W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | 497-4657-2 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 200V | Detailed Description | N-Channel 200V 20A (Tc) 80W (Tc) Surface Mount PowerFlat™ (6x5) |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
