STL18N60M2

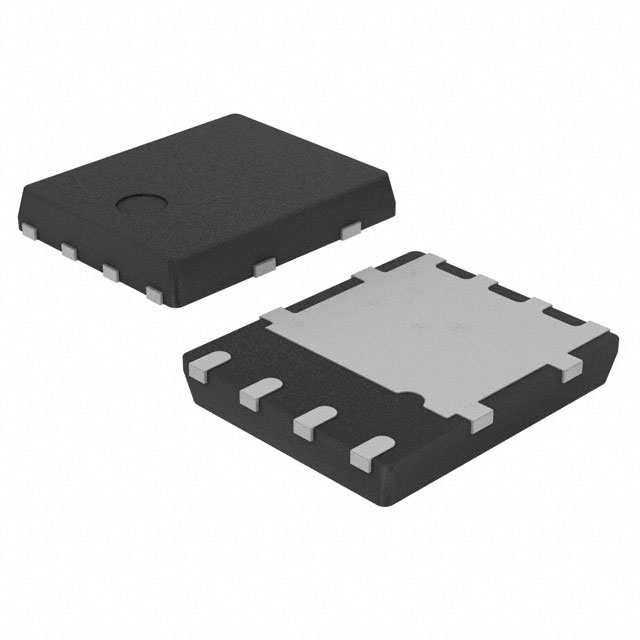

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL18N60M2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL18N60M2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL18N60M2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 600V 9A POWERFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.368 | $2.114 | $1.733 | $1.403 | $1.184 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | STL18N60M2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 600V 9A POWERFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31726 pcs | Data sheet | STL18N60M2 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±25V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerFlat™ (5x6) HV | Series | MDmesh™ II Plus |
| Rds On (Max) @ Id, Vgs | 308 mOhm @ 4.5A, 10V | Power Dissipation (Max) | 57W (Tc) |
| Packaging | Original-Reel® | Package / Case | 8-PowerVDFN |
| Other Names | 497-15146-6 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 42 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 791pF @ 100V | Gate Charge (Qg) (Max) @ Vgs | 21.5nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 9A (Tc) 57W (Tc) Surface Mount PowerFlat™ (5x6) HV | Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
