STG4159BJR

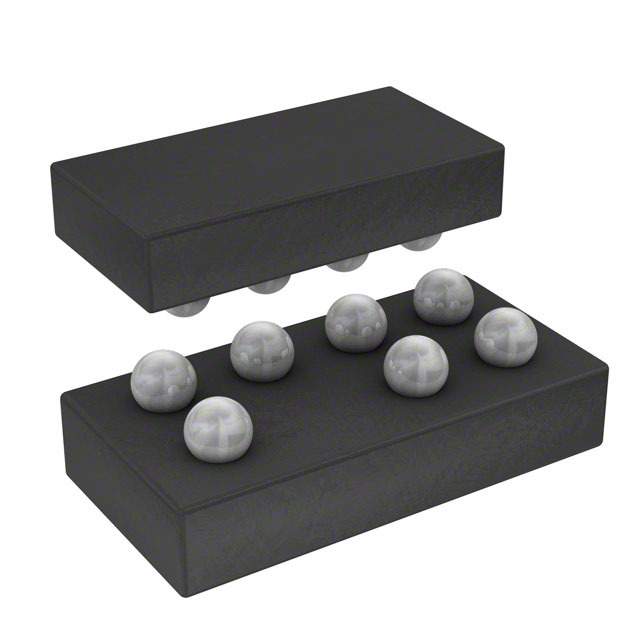

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STG4159BJR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STG4159BJR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STG4159BJR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC SWITCH SPDT 7CLIPCHIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STG4159BJR | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | IC SWITCH SPDT 7CLIPCHIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4299 pcs | Data sheet | STG4159 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 4.8 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 38ns, 17ns |
| Switch Circuit | SPDT | Supplier Device Package | 7-FlipChip |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 7-WFBGA, FCBGA | Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 300 mOhm | Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 1 Circuit IC Switch 2:1 300 mOhm 7-FlipChip |
| Current - Leakage (IS(off)) (Max) | 30nA | Crosstalk | -69dB @ 100kHz |
| Charge Injection | 140pC | Channel-to-Channel Matching (ΔRon) | 3 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 30pF | Base Part Number | STG4159 |
| -3db Bandwidth | 28MHz |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
