STF10NK50Z

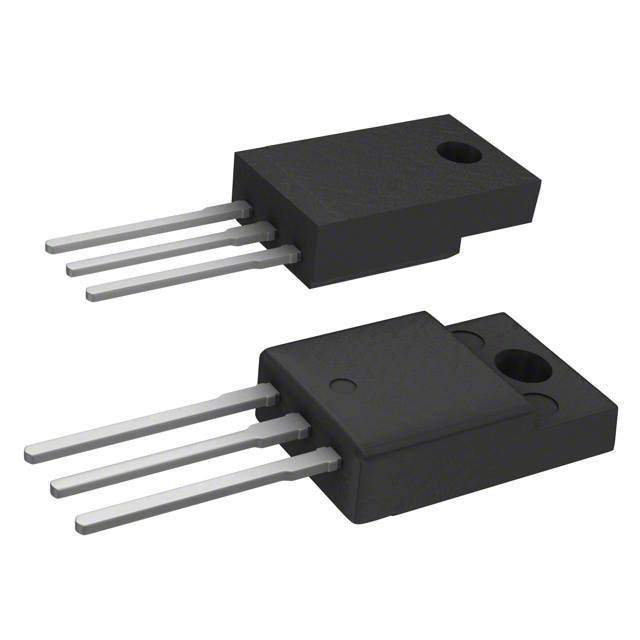

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STF10NK50Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STF10NK50Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STF10NK50Z |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 500V 9A TO220FP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.154 | $1.043 | $0.839 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | STF10NK50Z | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 500V 9A TO220FP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41864 pcs | Data sheet | STx10NK50Z |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4.5V @ 100µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220FP | Series | SuperMESH™ |
| Rds On (Max) @ Id, Vgs | 700 mOhm @ 4.5A, 10V | Power Dissipation (Max) | 30W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Other Names | 497-4654-5 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1219pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 39.2nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 500V | Detailed Description | N-Channel 500V 9A (Tc) 30W (Tc) Through Hole TO-220FP |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
