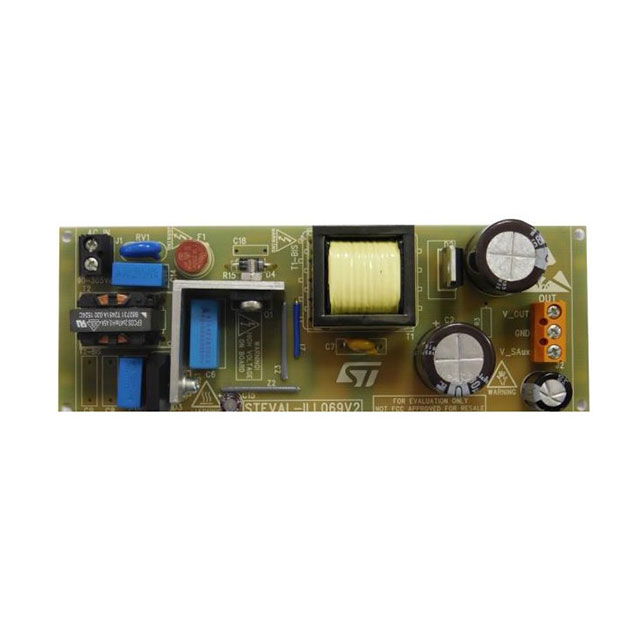

STEVAL-ILL069V2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ILL069V2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ILL069V2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ILL069V2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | EVAL BOARD FOR HVLED001A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $18.811 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ILL069V2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | EVAL BOARD FOR HVLED001A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1600 pcs | Data sheet | STF10LN80K5 DatasheetSTEVAL-ILL069V2 BriefHVLED001A Datasheet |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 48V |
| Voltage - Input | 90 ~ 305 VAC | Utilized IC / Part | HVLED001A |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Power - Output | 35W |
| Outputs and Type | 1, Isolated | Other Names | 497-16877 |
| Main Purpose | AC/DC, Primary Side | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | - | Detailed Description | HVLED001A - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board |
| Current - Output | 730mA | Board Type | Fully Populated |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
