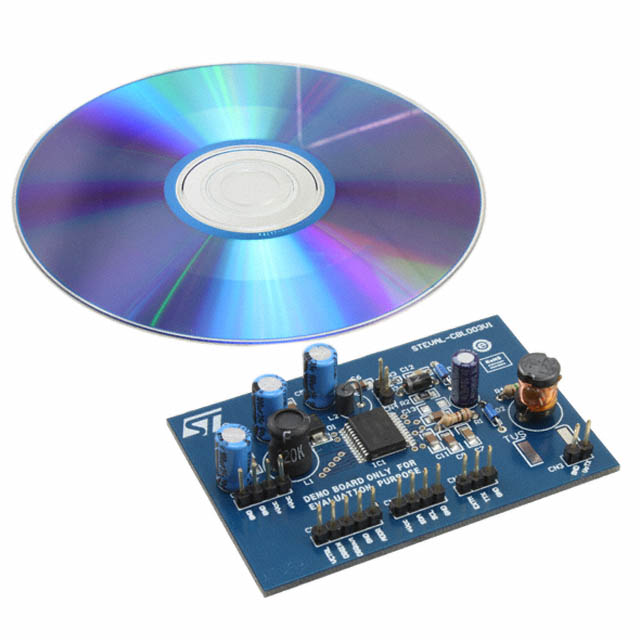

STEVAL-CBL003V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-CBL003V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-CBL003V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-CBL003V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL BASED ON LNBH23 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $30.174 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-CBL003V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD EVAL BASED ON LNBH23 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1043 pcs | Data sheet | STEVAL-CBL003V1 App NoteSTEVAL-CBL003V1 Data Brief |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 13 V ~ 18 V |
| Voltage - Input | 8 V ~ 15 V | Utilized IC / Part | LNBH23 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Boost | Outputs and Type | 1, Non-Isolated |
| Other Names | 497-8336 STEVALCBL003V1 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | Special Purpose DC/DC, LNB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 220kHz | Detailed Description | LNBH23 - Special Purpose DC/DC, LNB 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | - | Board Type | Fully Populated |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
