STB80N4F6AG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STB80N4F6AG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STB80N4F6AG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote

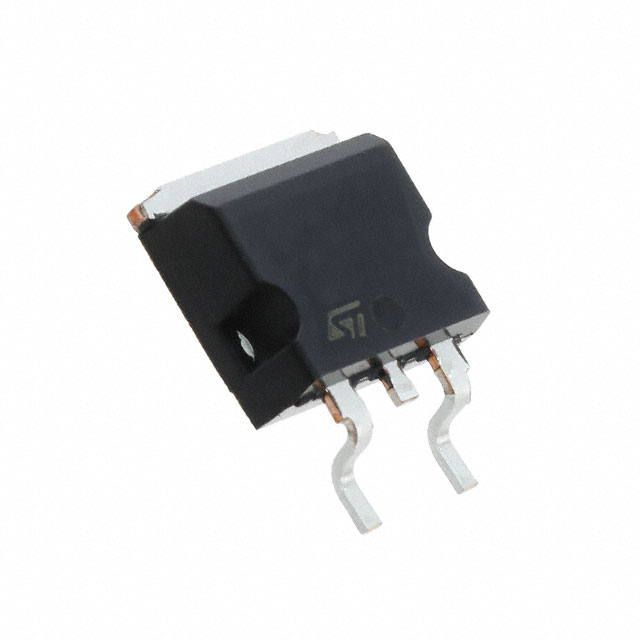

| Part Number | STB80N4F6AG |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 40V 80A D2PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.288 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STB80N4F6AG | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 40V 80A D2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67226 pcs | Data sheet | STB80N4F6AG DatasheetSpice Model Tutorial for Power MOSFETS |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D²PAK (TO-263) | Series | Automotive, AEC-Q101, STripFET™ |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 40A, 10V | Power Dissipation (Max) | 70W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | 497-16506-2 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 38 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2150pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 80A (Tc) 70W (Tc) Surface Mount D²PAK (TO-263) | Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
