ESDA12-1K

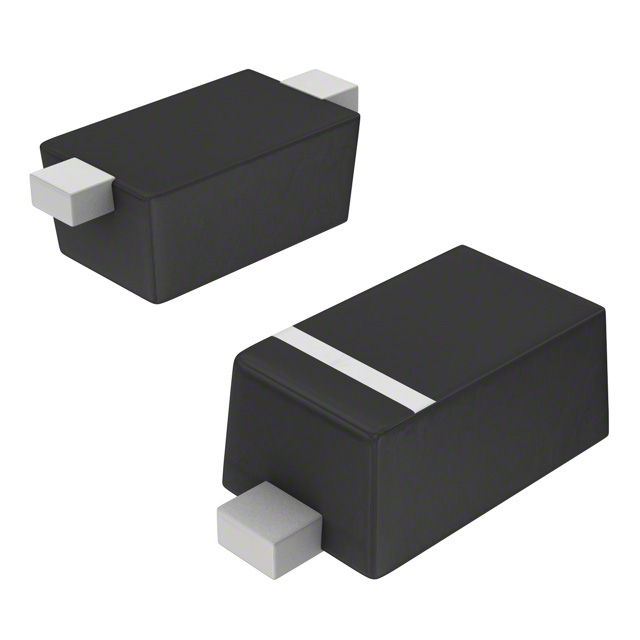

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESDA12-1K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESDA12-1K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESDA12-1K |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TVS DIODE 10V 28V SOD523 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.029 | $0.026 | $0.023 | $0.022 | $0.019 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESDA12-1K | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | TVS DIODE 10V 28V SOD523 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1252930 pcs | Data sheet | ESDA-1K |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 10V |
| Voltage - Clamping (Max) @ Ipp | 28V | Voltage - Breakdown (Min) | 12V |
| Unidirectional Channels | 1 | Type | Zener |
| Supplier Device Package | SOD-523 | Series | ESDA, TRANSIL™ |
| Power Line Protection | No | Power - Peak Pulse | 450W |
| Packaging | Tape & Reel (TR) | Package / Case | SC-79, SOD-523 |
| Other Names | 497-10766-2 ESDA121K |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 16A (8/20µs) | Capacitance @ Frequency | 150pF @ 1MHz |
| Base Part Number | ESDA1*-1K | Applications | General Purpose |
