EMIF03-SIM03F3

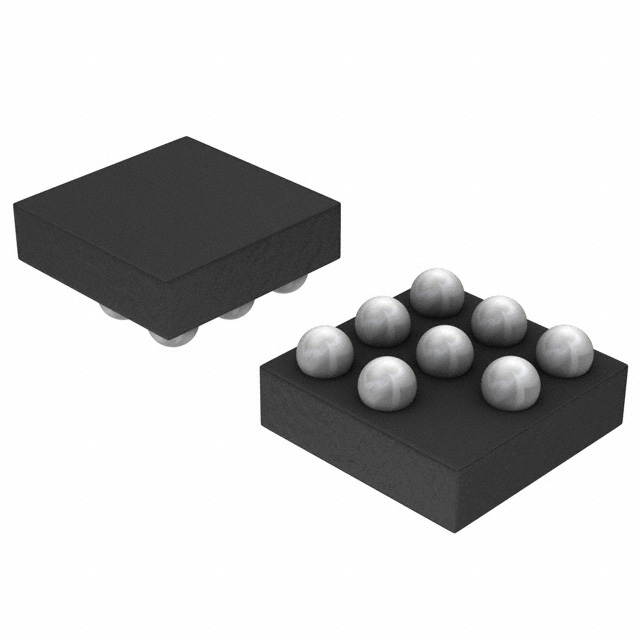

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMIF03-SIM03F3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF03-SIM03F3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMIF03-SIM03F3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | FILTER RC(PI) ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.048 | $0.045 | $0.041 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EMIF03-SIM03F3 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | FILTER RC(PI) ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 528965 pcs | Data sheet | EMIF03-SIM03F3 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 47 Ohms, 100 Ohms, C = 10pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.045" L x 0.045" W (1.14mm x 1.14mm) |
| Series | IPAD™ | Resistance - Channel (Ohms) | 47, 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 8-WFBGA, FCBGA |
| Other Names | 497-10891-2 EMIF03SIM03F3 |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.026" (0.65mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47 Ohms, 100 Ohms, C = 10pF 8-WFBGA, FCBGA | Center / Cutoff Frequency | - |
| Attenuation Value | - | Applications | Data Lines for Mobile Devices |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
