RJK6024DPD-00#J2

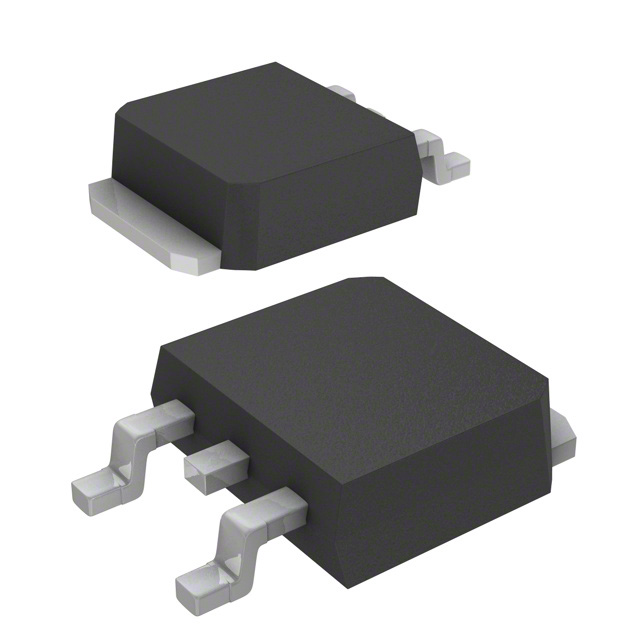

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RJK6024DPD-00#J2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RJK6024DPD-00#J2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | RJK6024DPD-00#J2 |
---|---|
Manufacturer | Renesas Electronics America |
Description | MOSFET N-CH 600V 0.4A MP3A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | RJK6024DPD-00#J2 | Manufacturer | Renesas Electronics America |
---|---|---|---|
Description | MOSFET N-CH 600V 0.4A MP3A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5050 pcs | Data sheet | RJK6024DPD |
Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
Supplier Device Package | MP-3A | Series | - |
Rds On (Max) @ Id, Vgs | 42 Ohm @ 200mA, 10V | Power Dissipation (Max) | 27.2W (Tc) |
Packaging | Tape & Reel (TR) | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Other Names | RJK6024DPD-00#J2-ND RJK6024DPD-00#J2TR |
Operating Temperature | 150°C (TJ) |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 37.5pF @ 25V |
Gate Charge (Qg) (Max) @ Vgs | 4.3nC @ 10V | FET Type | N-Channel |
FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 400mA (Ta) 27.2W (Tc) Surface Mount MP-3A |
Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
