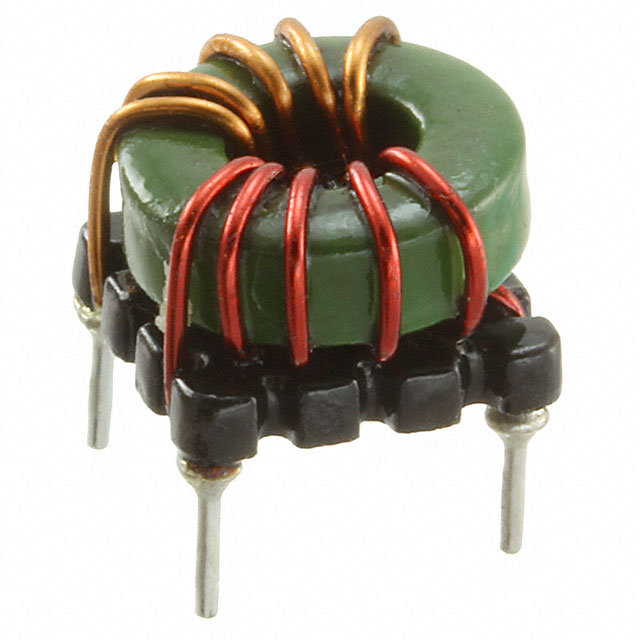

CMC-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMC-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMC-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMC-05 |
|---|---|
| Manufacturer | RECOM Power |
| Description | COMMON MODE CHOKE 5.2A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 27 pcs | 108 pcs | 513 pcs | 1026 pcs |
|---|---|---|---|---|---|
| $3.468 | $2.774 | $2.219 | $2.081 | $1.942 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CMC-05 | Manufacturer | RECOM Power |
|---|---|---|---|
| Description | COMMON MODE CHOKE 5.2A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16302 pcs | Data sheet | Current, LED Manual |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.433" L x 0.433" W (11.00mm x 11.00mm) |
| Series | CMC | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 30000902 945-2312-5 CMC-05-ND CMC05 |
Operating Temperature | -40°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.386" (9.80mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Through Hole 5.2A DCR 25 mOhm | DC Resistance (DCR) (Max) | 25 mOhm |
| Current Rating (Max) | 5.2A | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
