Home > Products > Filters > Common Mode Chokes > PL8209NLT

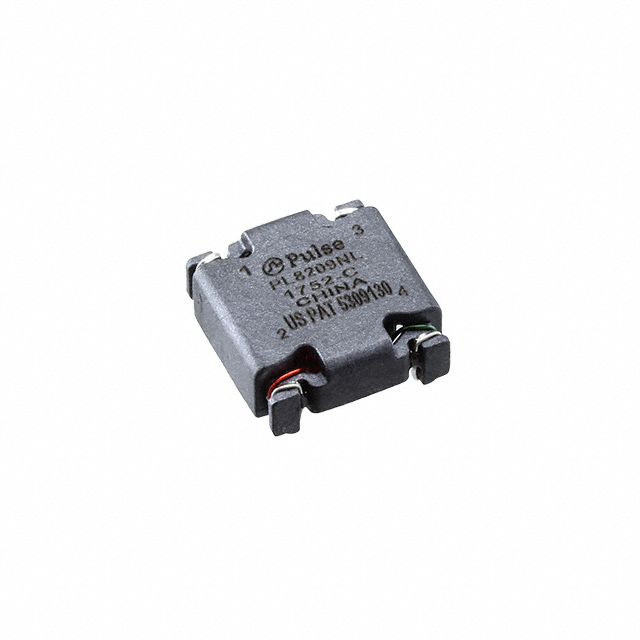

PL8209NLT

PL8209NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PL8209NLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number PL8209NLT
Manufacturer Pulse Electronics Corporation
Description COMMON MODE CHOKE 1.63A 2LN SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 22883 pcs
Reference Price
(In US Dollars)		500 pcs
$1.508

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.508

Product parameter

Part Number PL8209NLT Manufacturer Pulse Electronics Corporation
Description COMMON MODE CHOKE 1.63A 2LN SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 22883 pcs Data sheet Military/Aerospace Product Guide
Category Filters Voltage Rating - DC -
Voltage Rating - AC - Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Series SLIC Ratings -
Package / Case Horizontal, 4 PC Pad Operating Temperature -55°C ~ 130°C
Number of Lines 2 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 11 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height (Max) 0.215" (5.46mm)
Filter Type Power Line Features -
Detailed Description 2 Line Common Mode Choke Surface Mount 1.63A DCR 110 mOhm DC Resistance (DCR) (Max) 110 mOhm
Current Rating (Max) 1.63A Approvals -

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
