PA3747.106NL

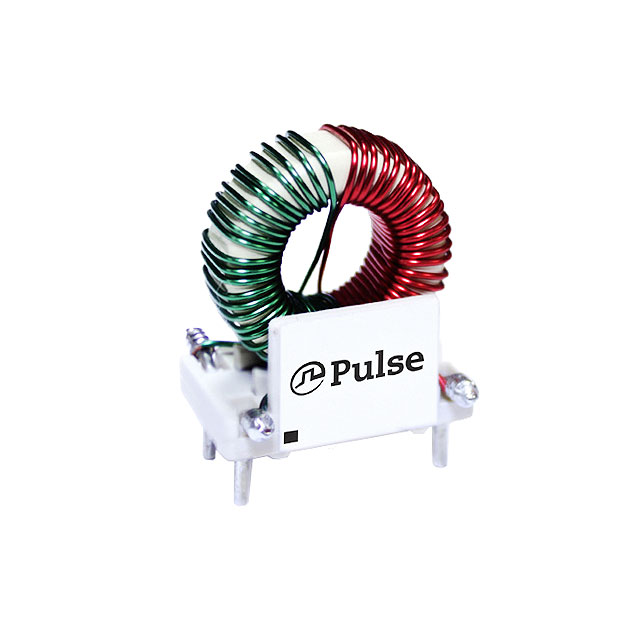

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3747.106NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3747.106NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3747.106NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 1.4A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.902 | $1.331 | $1.141 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.014 | $0.951 | $0.919 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3747.106NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1.4A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38653 pcs | Data sheet | PA3747.yyyNL Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.760" L x 0.717" W (19.30mm x 18.20mm) |
| Series | PA3747 | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 4 PC Pin |
| Other Names | 553-2664 PA3747.106NL-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.902" (22.90mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Through Hole 1.4A DCR 169 mOhm | DC Resistance (DCR) (Max) | 169 mOhm |
| Current Rating (Max) | 1.4A | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
